Adopting 32-bit ARM architecture chip, communication method: TCP/IP standard Ethernet communication.

Performance parameters:

Simultaneously possessing:

Number of authorization lists: 50688 entries

Number of Blacklists by Position: 2097152 (2 million level)

Maximum number of offline storage records: 20342

Maximum offline recharge list: 20000 transactions

The data collection speed is 50 transactions per second, the average download speed for list permissions is 35 transactions per second, the average download speed per bit is 50000 transactions per second, and the card swipe sensing time is less than 200 milliseconds.

Working voltage: 12V DC

Working environment: Temperature -10 degrees Celsius -50 degrees Celsius, humidity 5% -90%.

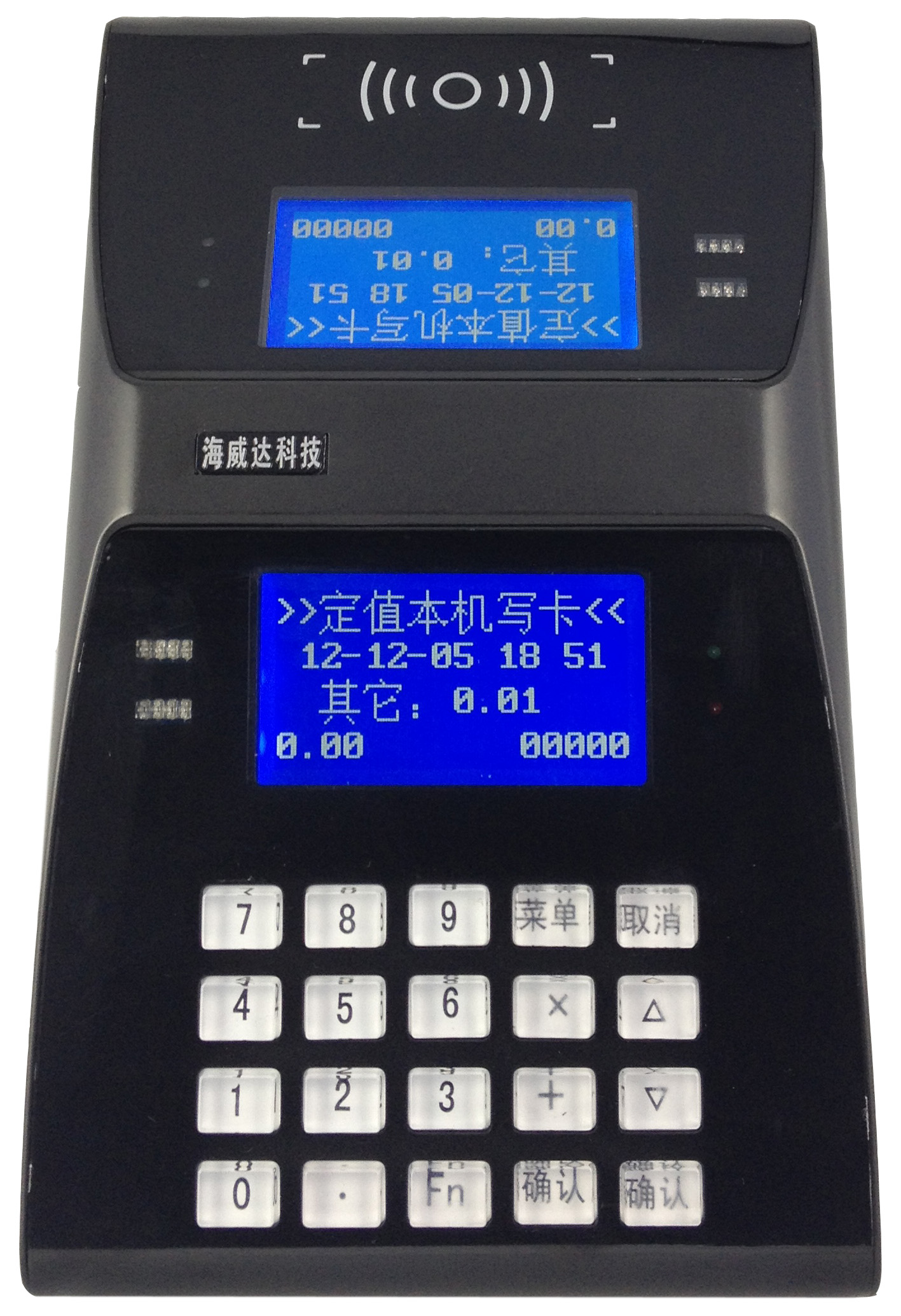

The consumer machine is equipped with high brightness LED red and green lights on both sides, which provide clear prompts when swiping the card

Peripheral port: With dual relay outputs, it can be externally connected to red lights, green lights, etc; An external buzzer is used to amplify the sound; One 232 output, capable of external thermal or needle printing, etc.

Using Flash storage, data will not be lost for 10 years in the event of a power outage.
