1. 17 inch touch screen display

2. RK 3288 quad core 1.8GHz, 2G+8G

3. Android 7.1 or above

4. Second generation ID card reader

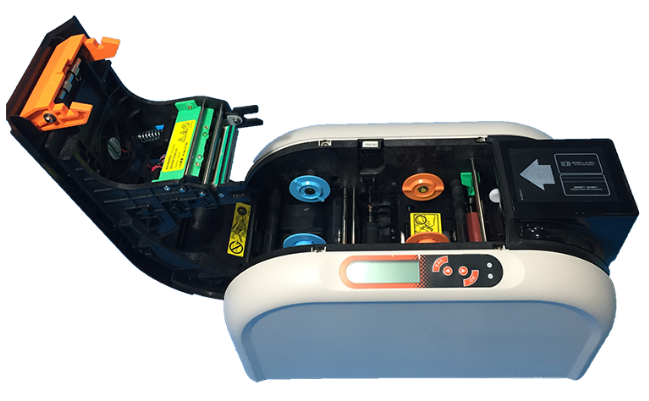

5. Thermal sublimation color card printer with programmable control for card insertion and writing

Printing speed color 17 seconds/sheet; Black and white printing takes 2.5 seconds per sheet

Entering the card box: 300 sheets (0.76mm thickness)

6. Receipt thermal printer

7. The printer comes with a card recycling function

8. Binocular facial camera

9. The overall power of the machine is 100W, the weight is 100 ± 10% Kg, and the size is approximately 80cm * 80cm * 180cm

The printer equipped is a fast card printer: in the testing environment, the entire process of card ingestion, card reading, card writing, and printing takes about 30 seconds to complete. In actual environments, the time for reading and writing databases needs to be added. The simple printing speed is 17 seconds per sheet for single-sided color.

The printer has been upgraded to a fast card printer that can print 560 sheets (single-sided printing) with a single ribbon change. Special note: The back and front logos of the work card must be fixed and printed by the card factory first. This means that this printer does not support direct full page color printing of cards with full blank layout, nor does it support double-sided printing.
