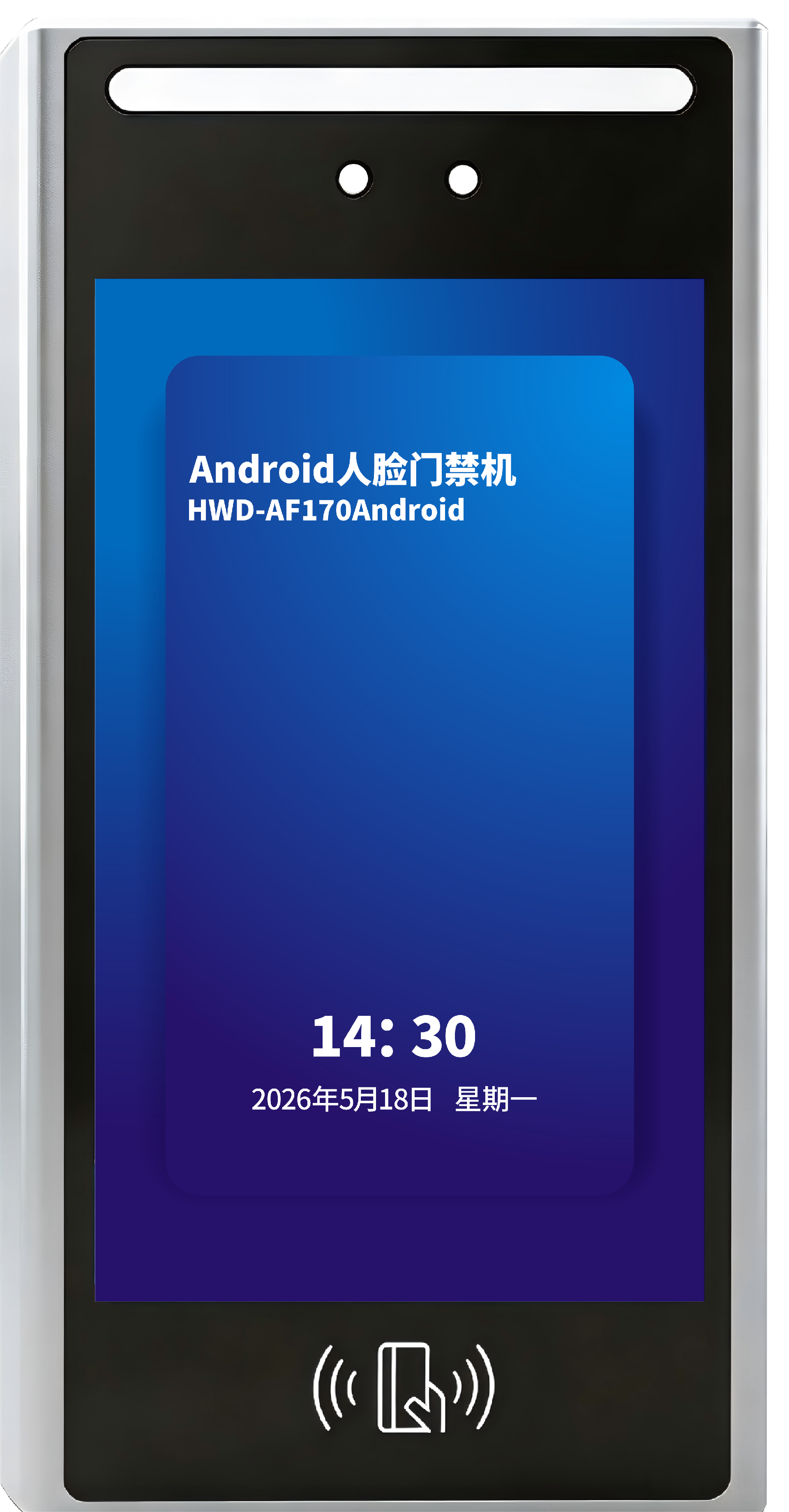

Facial recognition screen:

Product Model: HWD-AF170Android

Operating System: Android 11.0;

CPU model: quad core 64 bit Cortex-A55, with a maximum clock speed of 2.0GHz;

Storage: 2GB of memory and 16GB of storage;

Network interface: 10/100M adaptive network card, compliant with IEEE802.11b/g/n standard (2.4G);

Display screen size: 7 inches;

Best resolution: 600 * 1024;

Installation method: wall mounted, column mounted;

Length, width, and thickness: 218 * 114 * 23MM (length * width * thickness);

IP protection level: IP65;

Performance:<5MS;

Power supply: DC 12V adapter, output current 2A;

Working temperature: -20 ℃~60 ℃;

Working humidity: 20% to 90% (in non condensing water droplet state);

Support H5+Android mixed programming, customers can build their own application systems!

-------------------

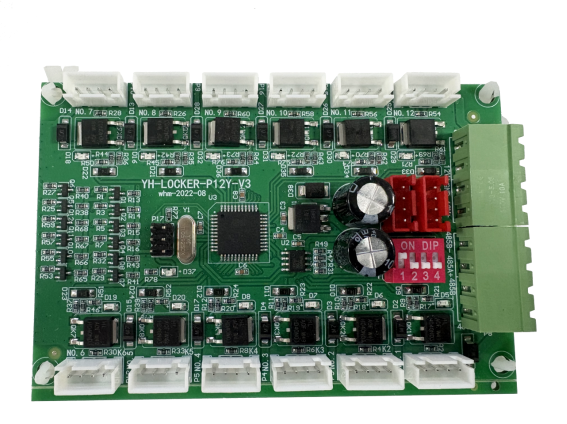

Key control board:

1 control 10 position lock control board

Note: Optional 60/80/100 bits/

-------------------

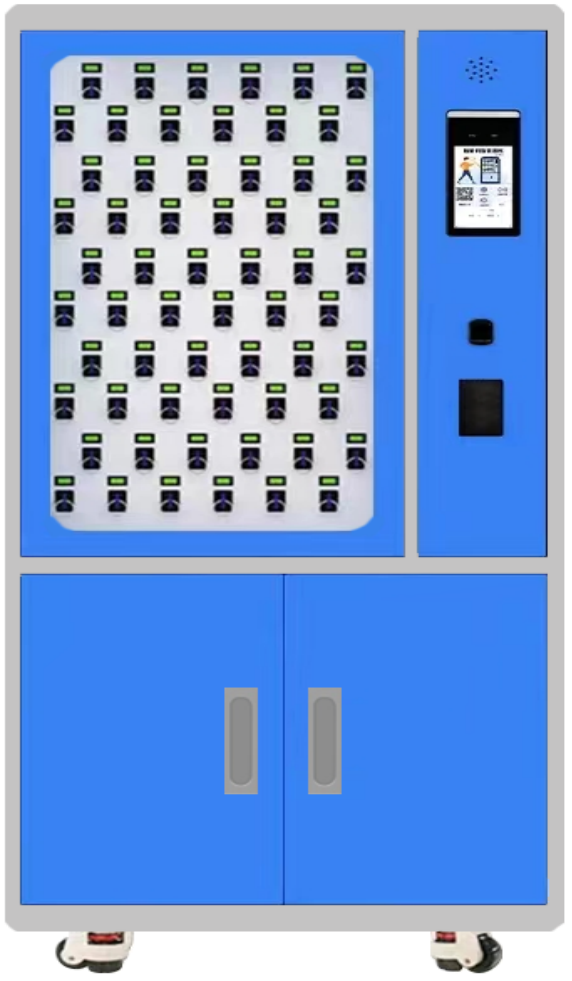

cabinet body

Material: Anti rust galvanized steel plate (bare plate 0.8mm, sprayed 1.0mm);

Length, width, and height: 1720 * 830 * 300mm;

Lock position: 60;
