1) Baking paint:

High end baking paint technology, colors can be made according to customer needs, helping to build beautiful, efficient and diverse scenes

Secure intelligent pedestrian entrance and exit management.

2) Electroplating:

Electroplating can enhance the corrosion resistance of metals (corrosion-resistant metals are often used for coating), increase hardness, and prevent abrasion

Consumption, smoothness, heat resistance, and surface aesthetics.

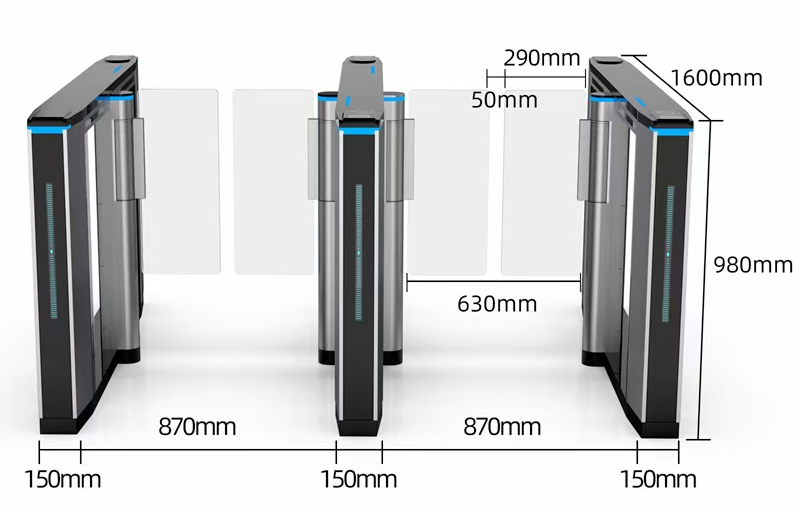

3) Single machine core size for grooving process: 1600 * 231 * 980mm

Dual movement size: 1600 * 312 * 980mm

Material: SUS 304 stainless steel vacuum plated

Backup power supply: supercapacitor (12V/3A)

Drive voltage: 24V

Movement: Brushless Speed Gate Movement

Channel width: Double swing ≤ 600mm

Traffic direction: one-way and two-way

Traffic speed: 40 people/minute (normally closed)

Operating environment: -20 ℃~70 ℃

Body thickness: 1.2mm

Lid thickness: 1.2mm

Motor: DC brushless motor
