1) Baking paint:

High end baking paint technology, colors can be made according to customer needs, helping to build beautiful, efficient and diverse scenes

Secure intelligent pedestrian entrance and exit management.

2) Electroplating:

Electroplating can enhance the corrosion resistance of metals (corrosion-resistant metals are often used for coating), increase hardness, and prevent abrasion

Consumption, smoothness, heat resistance, and surface aesthetics.

3) Groove making process:

The structural characteristics of the machine are that the frame adopts a fully steel split assembly structure, stainless steel groove processing, and is normalized and subjected to high-frequency vibration

Dynamically eliminate internal stress, ensure the overall accuracy of the machine tool, use stainless steel grooving technology, have excellent rigidity, and have good performance

The ability to resist twisting and tilting. Ø Product Name: TLX Wing Lock

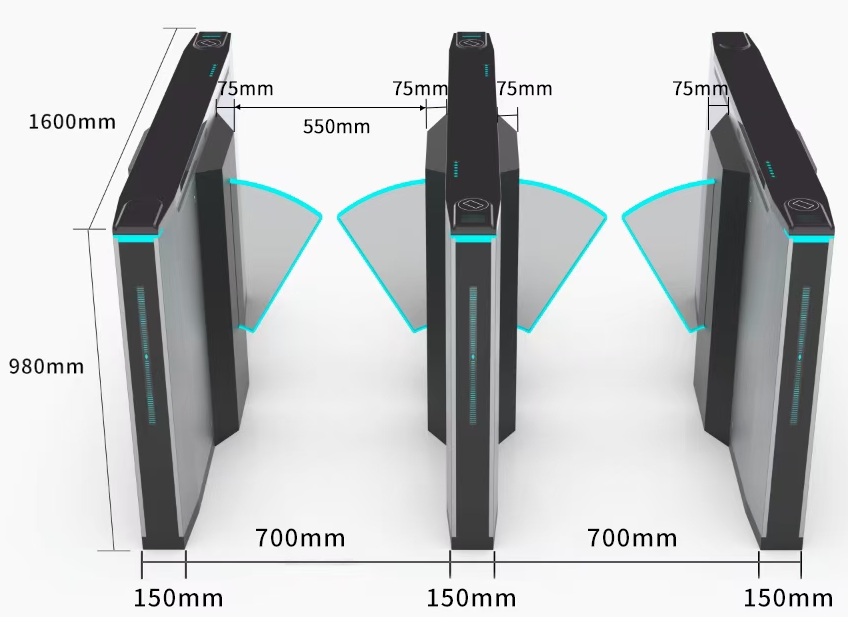

Ø Product size: 1600 * 300 * 980mm

Ø Material: SUS 304 stainless steel upper cover 1.2mm, body 1.2mm.

Ø Standard channel width: 550mm

Ø Power input: AC220V, 50Hz

Ø Drive voltage: DC24V 6.5A

Ø Drive mode: DC brushless motor

Ø Traffic direction: one-way and two-way

Ø Opening time: 0.2 seconds Ø Traffic speed: 25-35 people/minute (normally closed)

Ø Card reading types: M1 card, CPU card (can only read FM1208-10)

CPU card model)

Work instructions: voice broadcast, indicator light

Working environment: indoor, outdoor

Ø Working temperature: -20 ℃~65 ℃ Indoor or shade shed

Ø Communication method: TCP/IP

Ø External devices: ID card reader, card reader LED

Control card, facial module, etc
