Shenzhen Haiweida Technology Co., Ltd

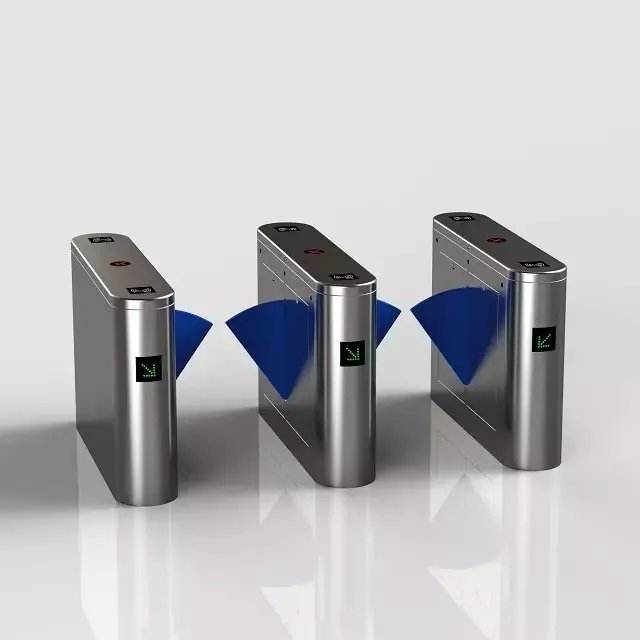

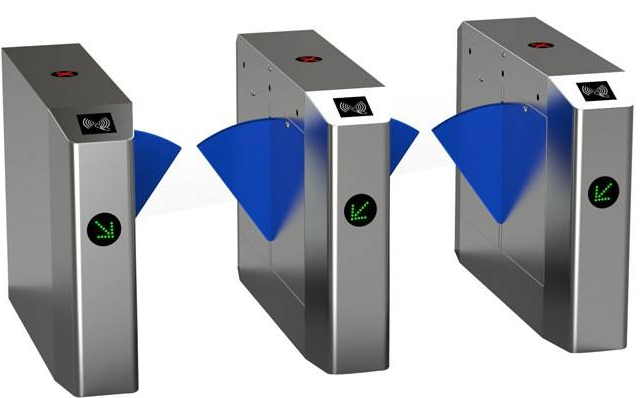

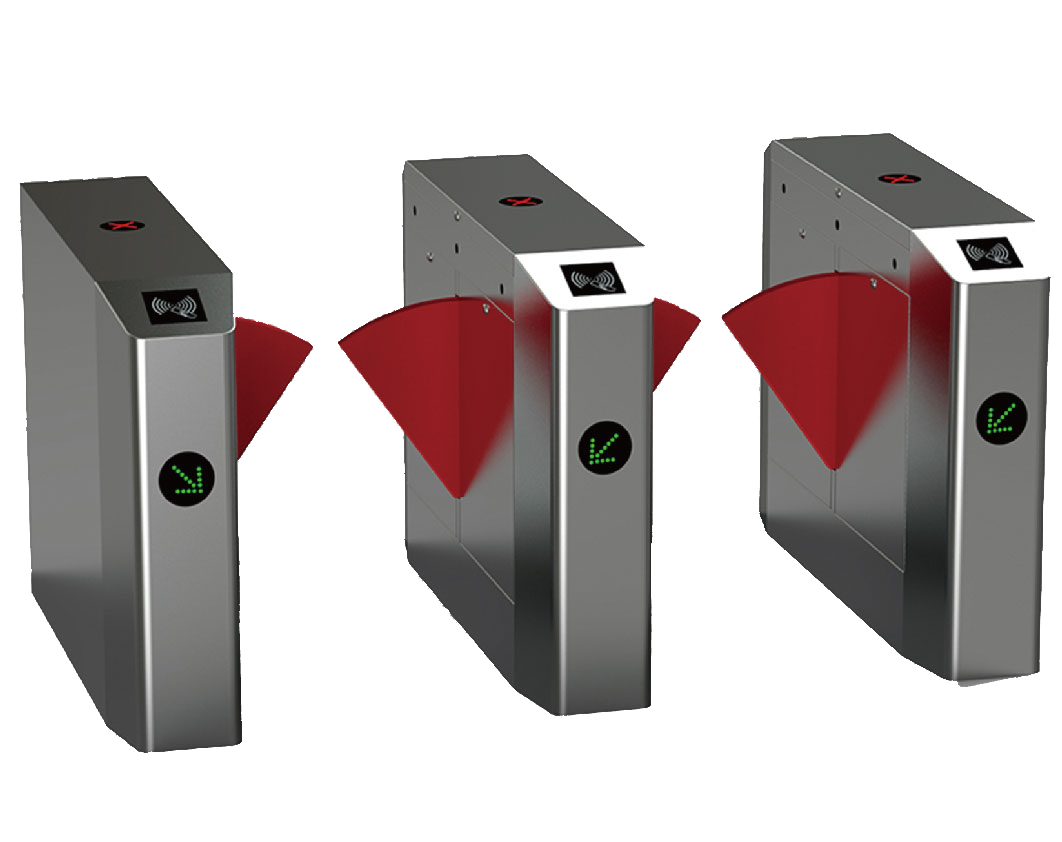

Octagonal inclined wing gate HWD-YZ501

Application Areas:

Octagonal inclined wing gate HWD-YZ501
Octagonal inclined wing gate HWD-YZ501
Details

Product size: 1200 * 300 * 980mm


Gate color: blue (customizable)


Channel width: ≤ 550mm


Internal structure: Standard 304 stainless steel frame structure with a top cover of 1.2mm and a body of 0.9mm


Traffic direction: Supports one-way and two-way (optional)


Traffic speed: 35 people/minute


Opening time: 0.2s


Power supply voltage: AC220V, 50Hz


Drive voltage: DC24V 5A


Performance: Electric


Work instructions: directional arrow indication, voice broadcast


Working environment temperature: -15 ℃~60 ℃


Relative humidity: ≤ 95%, not
