1) Baking paint:

High end baking paint technology, colors can be made according to customer needs, helping to build beautiful, efficient and diverse scenes

Secure intelligent pedestrian entrance and exit management.

2) Electroplating:

Electroplating can enhance the corrosion resistance of metals (corrosion-resistant metals are often used for coating), increase hardness, and prevent abrasion

Consumption, smoothness, heat resistance, and surface aesthetics.

3) Groove making process:

The structural characteristics of the machine are that the frame adopts a fully steel split assembly structure, stainless steel groove processing, and is normalized and subjected to high-frequency vibration

Dynamically eliminate internal stress, ensure the overall accuracy of the machine tool, use stainless steel grooving technology, have excellent rigidity, and have good performance

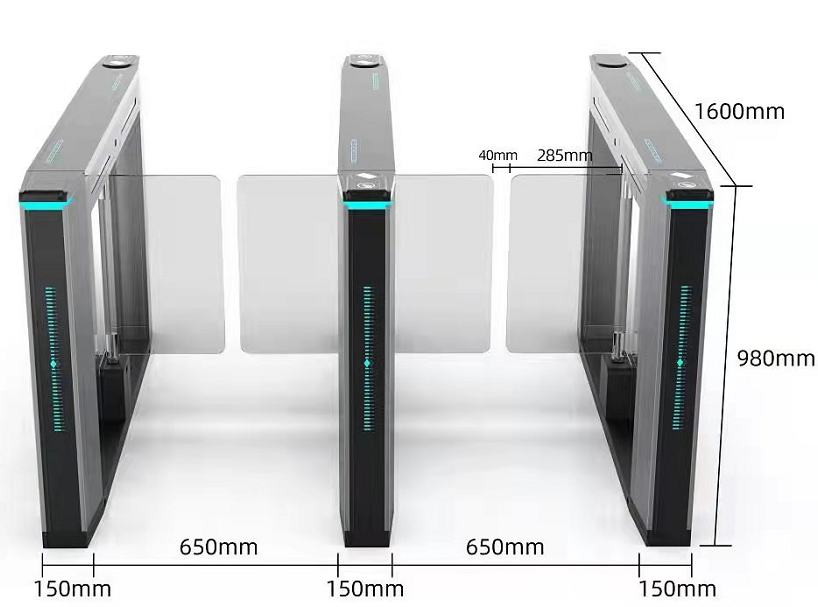

The ability to resist twisting and tilting. one Product size: 1600 * 150 * 980mm

2. Material: SUS 304 stainless steel - baked paint - electroplated top cover 1.2M M. Body 1.2MM.

3. Internal structure: Steel frame structure

4. Channel width: single swing 500mm, double swing 900mm (customizable)

5. Relative temperature: 5% -90% (no condensation)

6. Direction of passage: one-way/two-way

7. Movement: Brushless anti-collision integrated movement 1. Power input: 220VAC ± 10%/15%, 50HZ 4%

2. Drive voltage: DC24V6.25A

3. Drive mode: 24V 40W DC brushless motor

4. Opening time: 0.2 seconds

5. Traffic speed: 30 people/minute

6. Work instructions: indicator light - voice broadcast

7. External devices: IC card reader, ID card reader, scanning module

Block and facial module.

8. Average number of failures: 500W times
